Core Stacking Table

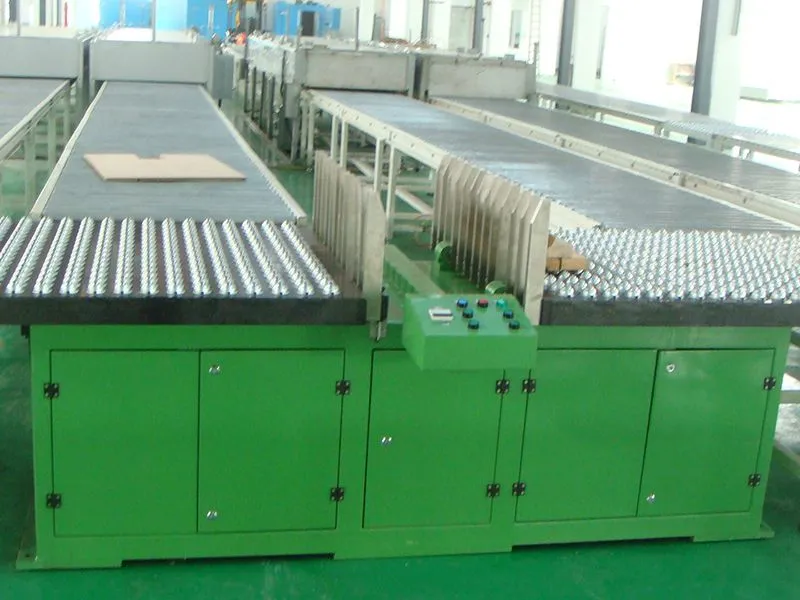

Hydraulic tilting unit for overturning amorphous cores up to 180 degree

Specializing in offering equipment for transformer core production, our company includes the core stacking table as one of its components, allowing for the rotation of amorphous cores up to 180 degrees. The core stacking table is used for drying process of amorphous core production line to turn the amorphous core 180 degrees, and it can adjust the position of the transformer core without manual righting, so as to improve the installation efficiency of the core.

Our core stacking table can realize the automatic turning of laminated cores, which are at the end of the assembly line. Instead of manual operation, it can effectively reduce the tediousness of manual operation when turning the core, permitting its good practicability.

Parameters
Machine Dimensions 2100mm(L)*900mm(B)*750mm(H)
Total Length 2100mm
Table Dimensions 750mm(L)750mm(B)*350mm(H)
Tilting Angle 0-90 degrees, effectively hover at any angle
Tilting Force Max: 800kg (center height is lower than 250mm)
Tilting Speed 90 degrees / 10 seconds-30 seconds (stepless adjustable)
Primary Power Source Hydraulic system, hydraulic cylinder
System Working Pressure 8-12 MPa
Operating Mode Electric control
Power Supply AC380V, 50Hz, 2.2kW
Get in Touch

We specialize in providing transformer core cutting machines and associated equipment, such as annealing furnaces, drying tunnel ovens, core stacking tables, and more. Please contact us for more information.

FAQs
The core stacking table can automatically turn the amorphous cores instead of the manual operation, which improves the installation efficiency and work efficiency of the laminated cores.
Our production lines are mainly used by amorphous core manufacturers, transformer core manufacturers and power transformer manufacturers.
Our equipment can process amorphous laminated cores, filter cores, DC immunity cores, permalloy cores, etc.
  • Amorphous core has high permeability, low coercivity characteristics, hysteresis loss is small;
  • Amorphous core resistivity is very high, is 3 ~ 6 times of silicon steel sheet;
  • Amorphous alloy materials made of core in good annealing conditions, the noise can be lower than the stacked silicon steel sheet core.
  • The manufacturing process is simple and energy-saving and environmentally friendly, amorphous alloy strip manufacturing is in the steelmaking directly after the spray belt, only one step to manufacture finished strips, simple process, energy saving, and the manufacturing process of pollution-free emissions, realizing the green manufacturing.
