90 Degree Tilt Table

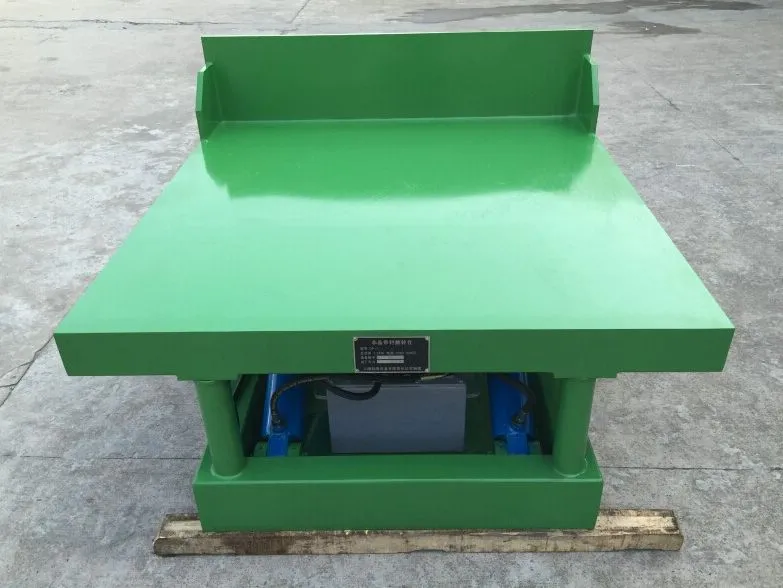

Hydraulic upender for tilting amorphous ribbons

As a company specializing in manufacturing equipment for transformer core production, we utilize essential equipment like 90-degree tilt tables to tilt amorphous ribbon materials. The 90 degree tilt table is primarily used for tilting operations on amorphous ribbon materials, which allows the gradual and stable transformation of horizontally placed ribbon coils into an upright position for easy hoisting in the subsequent process. Conversely, our 90 degree tilt table can also revert upright coil materials back to a horizontal position, facilitating transportation and storage.

Parameters
Machine Dimensions 1450mm(L)*1300mm(B)*850mm(H)
Table Size 1320mm (L) * 1300mm (B) * 350mm (H)
Tilting Angle 0 to 90 degrees, effectively hover at any angle
Tilting Force Max: 1000kg (center of gravity height: 600mm)
Tilting Speed 90 degrees/15 seconds to 30 seconds (stepless adjustable)
Primary Power Source Hydraulic system, double hydraulic cylinders
System Working Pressure 10—16 MPa
Operating Mode Electric control
Power Supply AC220V, 50HZ, 1.5kW
Get in Touch

We specialize in providing transformer core cutting machines and associated equipment, such as annealing furnaces, drying tunnel ovens, core stacking tables, and more. Please contact us for more information.

FAQs
In an amorphous core production line, the 90 degree tilt table is primarily used to slowly and steadily tilt horizontally placed amorphous alloy ribbon coil materials into an upright position or to revert upright coil materials to a horizontal position, facilitating handling, hoisting, transportation, or storage in subsequent processes.
Our amorphous ribbon core production line is mainly used by amorphous ribbon manufacturers, transformer core manufacturers, and power transformer manufacturers.
Our equipment can process amorphous cores for transformers, filter cores, DC immunity cores, and permalloy cores, among others.
Our amorphous core cutting line is primarily designed for rectangular ribbon shearing, with a cutting width ranging from 140mm to 220mm and a single-blade cutting length ranging from 300mm to 10,000mm.

Compared to other soft magnetic materials, our amorphous ribbon cores offer a wider range of high-frequency properties and lower core losses, including:

  • High permeability
  • High magnetic density
  • Reduced distribution and core losses
  • Wide range of frequency properties
  • Low coercivity forces
  • Low no-load loss
  • Low temperature rise
  • Excellent resistance to corrosion
  • High harmonic wave tolerances
Amorphous cores are primarily used in amorphous core transformers, inductors, drivers, motors, reactors, and any devices requiring high-frequency, low-loss performance.
